Semi-Solid Magnesium Alloy Die Casting Machine Working MG-1500 15000KN

Marka Adı:	EMT
Moq:	Pazarlık edilebilir
fiyat:	negotiable
Ödeme Şartları:	T/T, Batı Birliği
Tedarik Yeteneği:	50000 ADET / Ay

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

ÇİN

Sertifika:

TS16949、IOS9001

operasyonel:

Emniyet

Malzeme:

Magnezyum alaşımı

Üretim kapasitesi:

yüksek

Boyutlar:

Müşteri gerekli

oem:

EVET

işletmek:

basit

Ambalaj bilgileri:

Müşteri ihtiyaçlarına göre

Yetenek temini:

50000 ADET / Ay

Vurgulamak:

semi-solid Magnesium Alloy Die Casting Machine

15000KN Magnesium Alloy Die Casting Machine

MG-1500 die casting machine working

Ürün Açıklaması

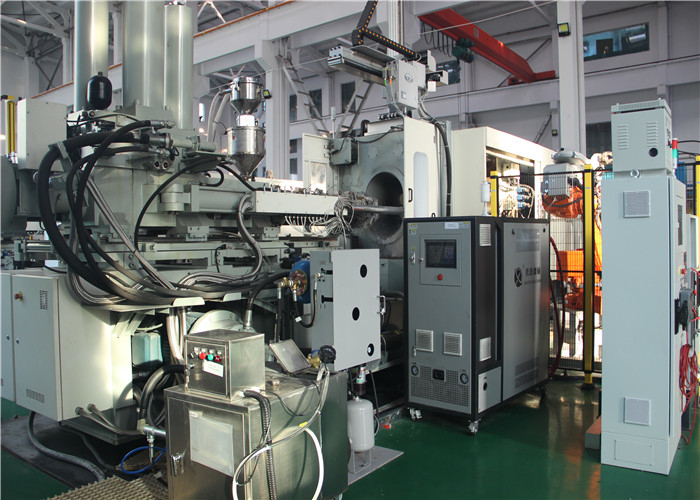

Mg-1500 magnesium alloy semi-solid injection molding machine

Technical parameters

No.	Description	Unit	MG-1500
I. Mold locking
1	Mold locking force	kN	15000
2	Mold lock stroke	mm	1200
3	Mold thickness (minimum to maximum)	mm	500-1400
4	Clamping plate dimension (horizontal × vertical)	mm	2010x1960
5	Column spacing (horizontal × vertical)	mm	1180×1180
6	Way of mold installation		T-groove way
II. Injection
1	Screw diameter	mm	130
2	Injection pressure	MPa	100
3	Theoretical injection volume	cm³	4635
4	Theoretical injection mass	g	6675
5	Theoretical injection rate	cm³∕s	61055
6	Screw’s maximum injection speed	m∕s	5
7	Screw’s rotation speed	r∕min	10-285
8	Injection stroke	mm	350
9	Injection nozzle dimension	mm	φ25×R45
10	Injection nozzle inlet	mm	75
11	Injection nozzle contact force	kN	800
12	Injection device position	mm	0,-350
I. Others
1	Systematic operating pressure	MPa	16
2	Ejection force	kN	570
3	Ejection stroke	mm	250
4	Electric motor power	kW	45×2
5	Heater’s output power	kW	120
6	Melting servo motor power	kW	80
7	Total electric capacity	kW	260
8	Oil tank capacity	L	1500
9	Machine weight	kg	110000
10	Machine’s overall dimension (L×W×H)	m	14x6.4x4.5

Packaging & Shipping:

1. Package:standard export packing or as per your requirement.

2. Delivery time and method:usually within 30 days by sea.

3. Port of loading:Jiangsu(China)

4. Payment:30% TT in advance,70% TT before delivery;or Irrevocable LC at sight.

Semi-Solid Magnesium Alloy Die Casting Machine Working MG-1500 15000KN 0

Semi-Solid Magnesium Alloy Die Casting Machine Working MG-1500 15000KN 1

Semi-Solid Magnesium Alloy Die Casting Machine Working MG-1500 15000KN 2

Advantage:

FAQ:

1. Q:Are you a factory or a trading company?

A:We are a factory which has been focus on Magnesium alloy deep processing lightweight field & semi-solid injection molding of Magnesium alloy for more than 16+ years.

2. Q: Is there quality control on all production lines?

A: Yes, all production lines have adequate quality control.

3. Q: Has the company established and implemented a standard procedure for purchasing contract review and approval?

A: Yes, with written standard procedures.

4. Q: Is there a procedure to conduct random product inspections after final packaging?

A: Yes, with clear standard and written inspection records.

5. Q: How can I get a quotation?

A: Please kindly send us following information 1) Product drawings by STEP/STP/PRT/PDF/IGS format etc. 2) Material, size and surface treatment request. 3) Required quantity. Normally,the quote will be offer in 1-6 hours. :)

6. Q: What is your payment terms?

A: T/T, Western Union, etc.
