Semi-Solid Thixomolding Magnesium Aluminum 8000KN T-Groove Way

Marka Adı:	EMT
Moq:	Pazarlık edilebilir
fiyat:	negotiable
Ödeme Şartları:	T/T, Batı Birliği
Tedarik Yeteneği:	50000 ADET / Ay

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

ÇİN

Sertifika:

TS16949、IOS9001

operasyonel:

Emniyet

Malzeme:

Magnezyum alaşımı

Üretim kapasitesi:

yüksek

Boyutlar:

Müşteri gerekli

Enerji tasarrufu:

EVET

Enjeksiyon hızı:

hızlı

Ambalaj bilgileri:

Müşteri ihtiyaçlarına göre

Yetenek temini:

50000 ADET / Ay

Vurgulamak:

semi-solid thixomolding magnesium

T-groove way thixomolding magnesium

8000KN thixomolding aluminum

Ürün Açıklaması

Semi-Solid Thixomolding Magnesium Aluminum 8000KN T-Groove Way

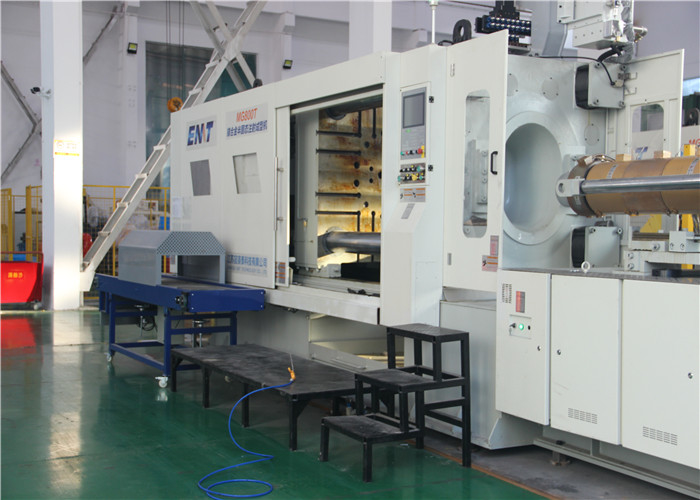

Mg-800 magnesium alloy semi-solid injection molding machine

Technical parameters

No.	Description	Unit	MG-800
I. Mold locking
1	Mold locking force	kN	8000
2	Mold lock stroke	mm	800
3	Mold thickness (minimum to maximum)	mm	380-1000
4	Clamping plate dimension (horizontal × vertical)	mm	1470x1480
5	Column spacing (horizontal × vertical)	mm	940×940
6	Way of mold installation		T-groove way
II. Injection
1	Screw diameter	mm	92
2	Injection pressure	MPa	105
3	Theoretical injection volume	cm³	1994
4	Theoretical injection mass	g	2911
5	Theoretical injection rate	cm³∕s	30578
6	Screw’s maximum injection speed	m∕s	5
7	Screw’s rotation speed	r∕min	10-300
8	Injection stroke	mm	300
9	Injection nozzle dimension	mm	φ20×R35
10	Injection nozzle inlet	mm	75
11	Injection nozzle contact force	kN	480
12	Injection device position	mm	0,-175
I. Others
1	Systematic operating pressure	MPa	16
2	Ejection force	kN	250
3	Ejection stroke	mm	150
4	Electric motor power	kW	55
5	Heater’s output power	kW	50
6	Melting servo motor power	kW	42
7	Total electric capacity	kW	150
8	Oil tank capacity	L	1000
9	Machine weight	kg	43000
10	Machine’s overall dimension (L×W×H)	m	10.5x2.3x3.3

Product Advantage:
Magnesium alloy has good toughness and strong shock absorption. Magnesium alloys tend to deform greatly when subjected to external forces. However, when subjected to impact load, the energy absorbed is 1.5 times that of aluminum, so it is suitable for the impact of parts - wheels; Magnesium alloy has high damping capacity and is an ideal material for avoiding fatigue caused by vibration and noise.

Semi-Solid Thixomolding Magnesium Aluminum 8000KN T-Groove Way 0

Semi-Solid Thixomolding Magnesium Aluminum 8000KN T-Groove Way 1

Semi-Solid Thixomolding Magnesium Aluminum 8000KN T-Groove Way 2

Advantage:

FAQ:

1. Q:Are you a factory or a trading company?

A:We are a factory which has been focus on Magnesium alloy deep processing lightweight field & semi-solid injection molding of Magnesium alloy for more than 16+ years.

2. Q: Is there quality control on all production lines?

A: Yes, all production lines have adequate quality control.

3. Q: Has the company established and implemented a standard procedure for purchasing contract review and approval?

A: Yes, with written standard procedures.

4. Q: Is there a procedure to conduct random product inspections after final packaging?

A: Yes, with clear standard and written inspection records.

5. Q: How can I get a quotation?

A: Please kindly send us following information 1) Product drawings by STEP/STP/PRT/PDF/IGS format etc. 2) Material, size and surface treatment request. 3) Required quantity. Normally,the quote will be offer in 1-6 hours. :)

6. Q: What is your payment terms?

A: T/T, Western Union, etc.
