Tiksokalıplama Makinesi
Created with Pixso.

MG-800 Small Injection Molding Machine 8000kN Thixomolding Magnesium

MG-800 Small Injection Molding Machine 8000kN Thixomolding Magnesium

Marka Adı: EMT
Moq: Pazarlık edilebilir
fiyat: negotiable
Ödeme Şartları: T/T, Batı Birliği
Tedarik Yeteneği: 50000 ADET / Ay
Ayrıntılı Bilgiler
Menşe yeri:
ÇİN
Sertifika:
TS16949、IOS9001
operasyonel:
Emniyet
Malzeme:
Magnezyum alaşımı
Üretim kapasitesi:
yüksek
Boyutlar:
Müşteri gerekli
Enerji tasarrufu:
EVET
Enjeksiyon hızı:
hızlı
Ambalaj bilgileri:
Müşteri ihtiyaçlarına göre
Yetenek temini:
50000 ADET / Ay
Vurgulamak:

MG-800 small injection molding machine

,

8000kN small injection molding machine

,

8000kN thixomolding magnesium

Ürün Açıklaması

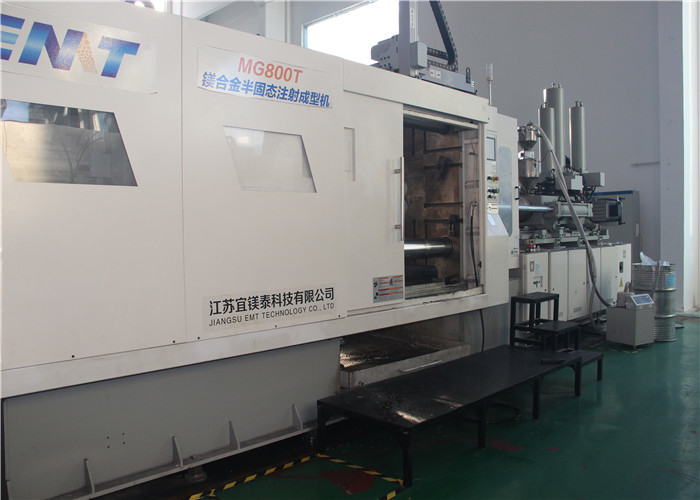

MG-800 Small Injection Molding Machine 8000kN Thixomolding Magnesium

Mg-800 magnesium alloy semi-solid injection molding machine

Technical parameters



No.DescriptionUnitMG-800
I. Mold locking
1Mold locking forcekN8000
2Mold lock strokemm800
3Mold thickness (minimum to maximum)mm380-1000
4Clamping plate dimension (horizontal × vertical)mm1470x1480
5Column spacing (horizontal × vertical)mm940×940
6Way of mold installation T-groove way
II. Injection
1Screw diametermm92
2Injection pressureMPa105
3Theoretical injection volumecm³1994
4Theoretical injection massg2911
5Theoretical injection ratecm³∕s30578
6Screw’s maximum injection speedm∕s5
7Screw’s rotation speedr∕min10-300
8Injection strokemm300
9Injection nozzle dimensionmmφ20×R35
10Injection nozzle inletmm75
11Injection nozzle contact forcekN480
12Injection device positionmm0,-175
I. Others
1Systematic operating pressureMPa16
2Ejection forcekN250
3Ejection strokemm150
4Electric motor powerkW55
5Heater’s output powerkW50
6Melting servo motor powerkW42
7Total electric capacitykW150
8Oil tank capacityL1000
9Machine weightkg43000
10Machine’s overall dimension (L×W×H)m10.5x2.3x3.3


Application:
Magnesium alloy is a high-performance lightweight structural material made of magnesium. Its specific gravity is similar to that of plastic, and its stiffness and strength is no less than that of aluminum. It has strong seismic, electromagnetic, thermal and electrical properties, and can be completely recycled and pollution-free. Magnesium light quality, its density is only 1.7 kg/m3, is two-thirds of aluminum, steel, about a quarter of the strength higher than that of aluminum alloy and steel, than the stiffness is close to aluminum alloy and steel, able to withstand a certain load, good castability and dimensional stability, easy processing, low rejection rate, good damping coefficient, damping quantity is greater than the aluminum alloy and cast iron, It is very suitable for automobile production, and has a wide application space in aerospace, portable computers, mobile phones, electrical appliances, sports equipment and other fields.
MG-800 Small Injection Molding Machine 8000kN Thixomolding Magnesium 0
MG-800 Small Injection Molding Machine 8000kN Thixomolding Magnesium 1
MG-800 Small Injection Molding Machine 8000kN Thixomolding Magnesium 2
Advantage:
MG-800 Small Injection Molding Machine 8000kN Thixomolding Magnesium 3

FAQ:
1. Q:Are you a factory or a trading company?
A:We are a factory which has been focus on Magnesium alloy deep processing lightweight field & semi-solid injection molding of Magnesium alloy for more than 16+ years.
2. Q: Is there quality control on all production lines?
A: Yes, all production lines have adequate quality control.
3. Q: Has the company established and implemented a standard procedure for purchasing contract review and approval?
A: Yes, with written standard procedures.
4. Q: Is there a procedure to conduct random product inspections after final packaging?
A: Yes, with clear standard and written inspection records.
5. Q: How can I get a quotation?
A: Please kindly send us following information 1) Product drawings by STEP/STP/PRT/PDF/IGS format etc. 2) Material, size and surface treatment request. 3) Required quantity. Normally,the quote will be offer in 1-6 hours. :)
6. Q: What is your payment terms?
A: T/T, Western Union, etc.
